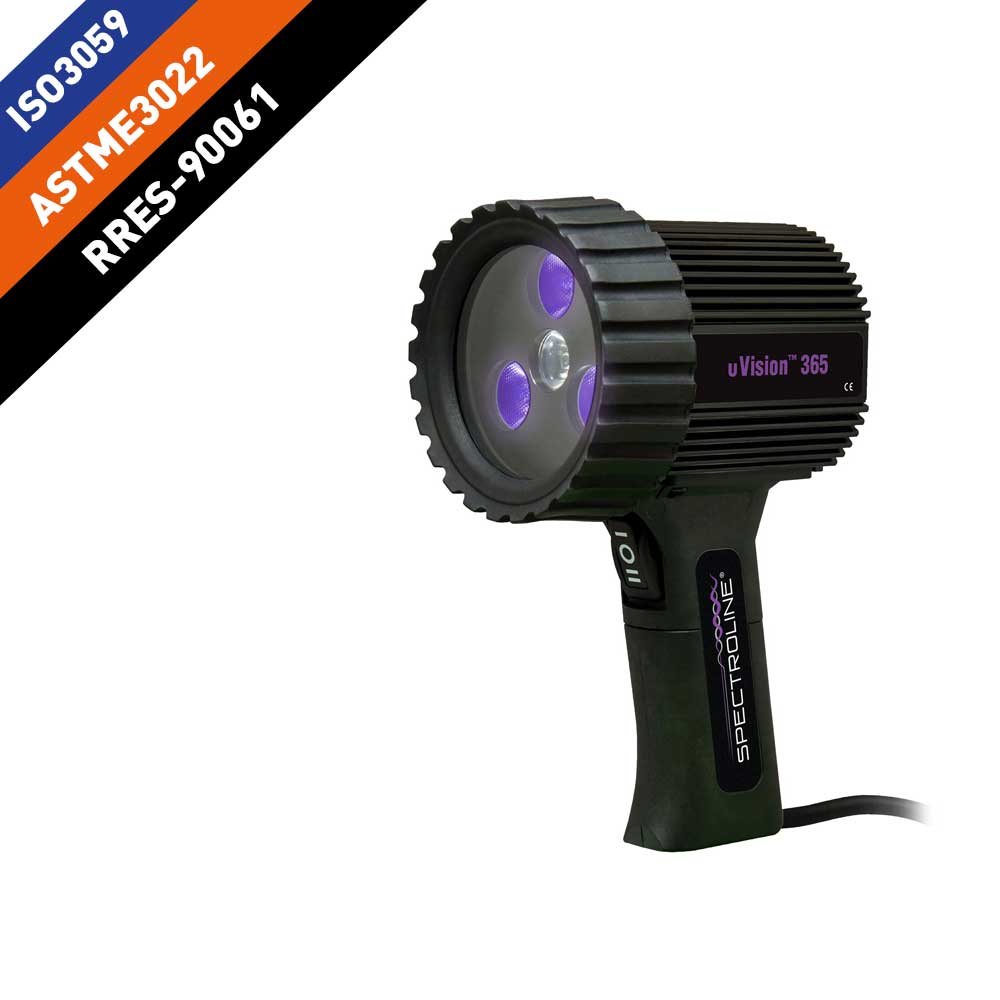

| Description | The uVision 365 is a range of UV-A inspection lamps used for Non-Destructive Testing (NDT) and fluorescence detection. Part of the DELUXE SBLC (Standard Compliant) Series, the UV-365SBLC/20/F is the wired solution of choice for the most regulated inspections. It is designed for very high-quality evaluations. It incorporates Thermal Cut-Off Circuitry that prevents the lamp from going out of specification when the internal temperature exceeds limits. Using an heat sink design, the uVision™ cools mechanically without the need for a fan (fanless). In addition to three powerful UV-A LEDs (365 nm), an adjustable white LED is integrated into the lamp for illuminating work areas and scanning surface defects. The front panel is equipped with integral UV-A filters to reduce visible wavelengths and maximise contrast. Lightweight and robust, it is IP65 rated (dustproof and water resistant). Specifications:
Supplied as a kit in a case including the lamp with integrated mains power supply, power cord and UV-A protective glasses.  |
|---|
| Technical Data Sheet | uVision365_TDS_english.pdf (1.44MB) |
|---|
| Approvals |
|
|---|
| SKU (GTIN) | 0672057089057 |
|---|---|
| Format | Material |
| ERP Code | 101284V |
| Regulatory constraints | Each customer is responsible for verifying the regulatory constraints incumbent on him for import and transport |
